K8S_09_K8S opensll 签发证书

##########+++++++===
创建证书：hdss7-200.hostname(10.4.7.200)上面操作：

cd /opt/certs
用openssl 创建证书

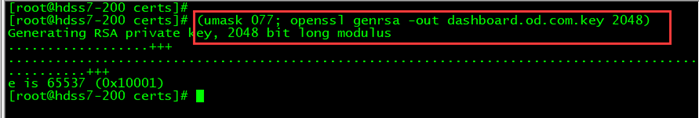

一、创建私钥：
(umask 077; openssl genrsa -out dashboard.od.com.key 2048)



二、创建证书签发的请求文件
openssl req -new -key dashboard.od.com.key -out dashboard.od.com.csr -subj "/CN=dashboard.od.com/C=CN/ST=BJ/L=Beijing/O=OldboyEdu/OU=ops"



三、签发证书
openssl x509 -req -in dashboard.od.com.csr -CA ca.pem -CAkey ca-key.pem -CAcreateserial -out dashboard.od.com.crt -days 3650



#######+++++++++
配置认证：[ 10.4.7.11 10.4.7.12 ]
cd /etc/nginx && mkdir certs && cd certs
scp hdss7-200:/opt/certs/dashboard.od.com.key .
scp hdss7-200:/opt/certs/dashboard.od.com.crt .


cd /etc/nginx/conf.d
vim dashboard.od.com.conf

server {
 listen 80;
 server_name dashboard.od.com;
 rewrite ^(.*)$ https://${server_name}$1 permanent;
}
server{
 listen 443 ssl;
 server_name dashboard.od.com;
 ssl_certificate /etc/nginx/certs/dashboard.od.com.crt;
 ssl_certificate_key /etc/nginx/certs/dashboard.od.com.key;
 ssl_session_cache shared:SSL:1m;
 ssl_session_timeout 10m;
 ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
 ssl_ciphers HIGH:!aNULL:!MD5;
 ssl_prefer_server_ciphers on;
 location / {
 proxy_set_header Host $http_host;
 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
 proxy_pass http://default_backend_traefik;
 }
}
保存，退出，重启nginx
nginx -t
nginx -s reload
######++++++++

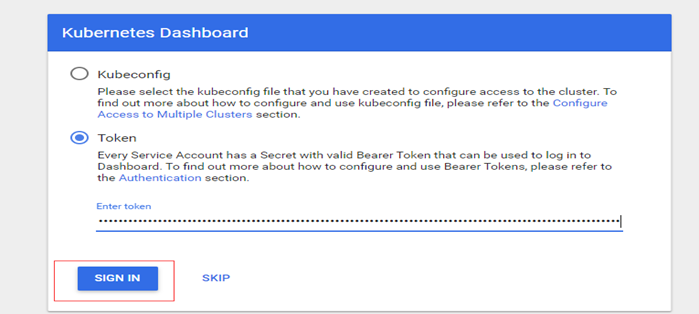

dashboard ---->sign in
清除浏览器缓存，重新打开dashboard.od.com








hdss7-21


kubectl describe secret kubernetes-dashboard-admin-token-2jvzg -n kube-system




+++++++++
如果把密钥复制到浏览器里面，点sign in 没有反应，可以尝试换一个新一点版本的dashboard
hdss7-200 上面操作：
docker pull hexun/kubernetes-dashboard-amd64:v1.10.1
docker images|grep dashboard
docker tag f9aed6605b81 harbor.od.com/public/dashboard:v1.10.1



docker login harbor.od.com
docker push harbor.od.com/public/dashboard:v1.10.1


#################++++++++
我们可以通过 在 hdss7-200 上面修改 dashboard 的deployment的yaml文件

再 kubectl apply -f




也可直接在dashboard.od.com 图形化界面里面修改。









hdss7-21 或者 hdss7-22 上面查看新的窗口是否启动成功



浏览器，清除浏览器缓存，重新登录 dashboard.od.com
